Description

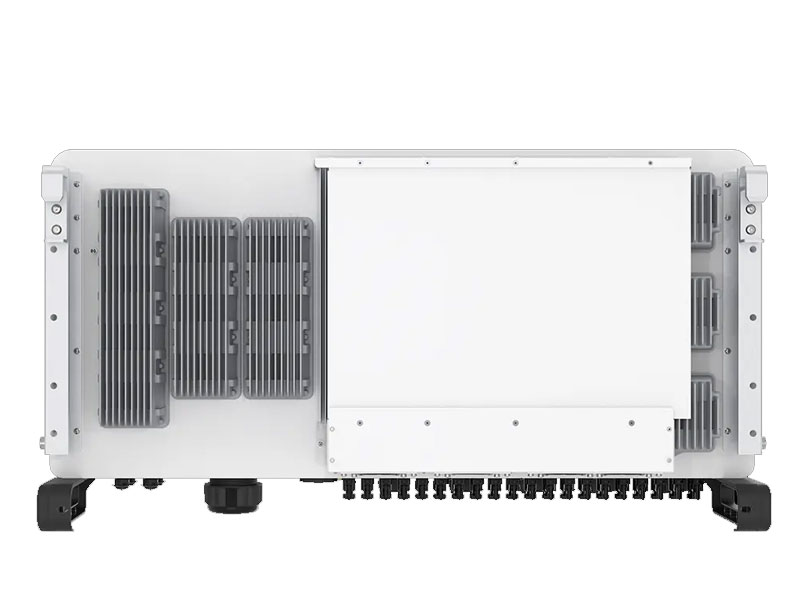

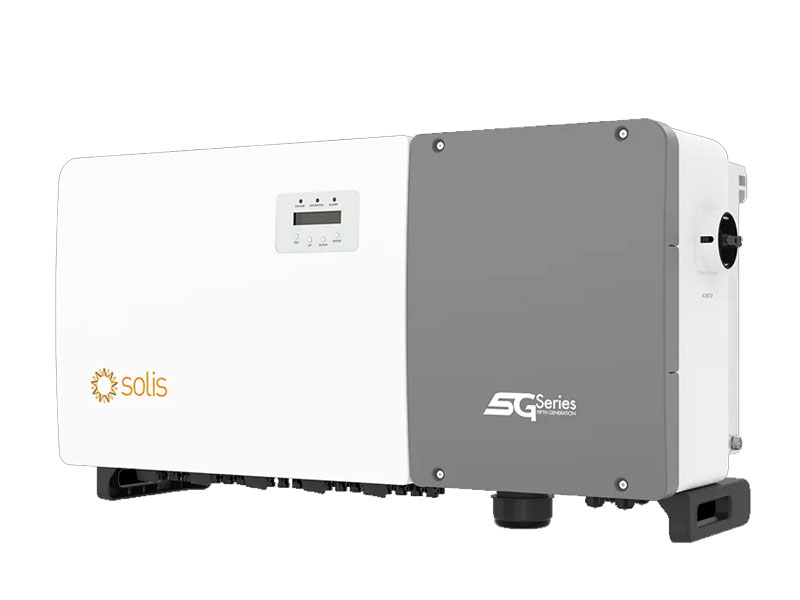

Solis 110kW S5 3 Phase Grid-Tie Inverter Part No: SOL-110.0-3PH-5G-DC
Rating: 110,000W
Phases: 3
MPPTS: 10   Solis 110kW S5 3-Phase Grid-Tie Inverter Key Features: High Overloading Capability: Max. 13A per string (26A per MPPT) with 150% DC overloading capability. Advanced MPPT Technology: 10 individual MPPTs to minimize mismatch loss and optimize performance. Exceptional Efficiency: Efficient logic algorithm with over 99% maximum efficiency. String Monitoring: Enables shorter operation and maintenance (O&M) times. Intelligent IV Scan: Remote and local scanning function for performance monitoring. Safety Features: Includes leakage current repression technology and DC input reverse alarm. Volt-Watt Mode: Integrated for better power management. Anti-PID Function: Optional feature to prevent potential-induced degradation. Reactive Power Compensation: Enhances grid stability. Integrated AFCI: DC arc-fault circuit protection for added safety. Surge Protection: Type 2 surge protection for both DC and AC inputs.   Solis 110kW S5 3-Phase Grid-Tie Inverter  Specifications: Weight: 94 kg Rated Power: 110,000 W Min PPT Voltage: 180 V Max PPT Voltage: 1,000 V DC Startup Voltage: 195 V DC Shutdown Voltage: 180 V Max Input Voltage: 1,000 V Max DC Power: 165,000 W Max AC Power (5 Minutes): 110,000 W Surge AC Power (1 Second): 110,000 W Max DC Current: 260 A Max DC Inputs: 20 Connector Type: MC4 Included Connectors: 32 Euro Efficiency: 98.3% Transformer: None MPPT Quantity: 10 Integrated DC Switch: Yes Warranty: 5 years   Important Notice: In South Africa, all 110kW inverters, or any combination totaling 100kW or more, must be set with a ramp-up rate of 10% per minute, as per NRS097-2-1:2017 – Annex G1.3. A firmware upgrade is required, which the manufacturer plans to make available in November 2022. Please note that this inverter does not include a data logger, CT, meter, or export power manager. The meter “SOL-METER-3PH-CT3” is necessary for export power control of one inverter; for multiple inverters, use the EPM3-5G-PLUS. The EPM3-5G-PLUS includes a built-in data logger. These items are sold separately.
