Description

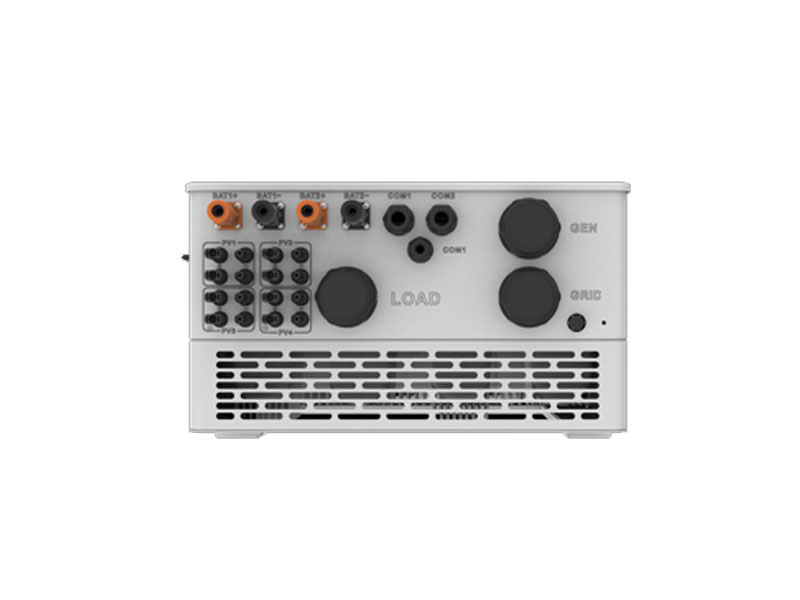

50kW Deye 3-Phase Hybrid HV Inverter Overview The Deye 50kW 3-Phase Hybrid HV Inverter is a high-performance, commercial-grade solution designed for large-scale solar systems with high-voltage lithium-ion battery storage (160–800V). It delivers exceptional efficiency, supports both on-grid and off-grid operation, and offers complete flexibility for integration with existing PV arrays or diesel generators. Perfect for factories, farms, commercial buildings, and large estates, this inverter combines high yields, smart monitoring, and advanced protection features for maximum reliability. Key Features 100% Unbalanced Output – Delivers up to 50% rated power per phase. Flexible Coupling – DC and AC coupling for retrofits or new installs. Parallel Ready – Up to 10 units in parallel for on/off-grid operation. High-Voltage Battery – 160–800V for greater efficiency and reduced heat loss. Strong Surge Capacity – 1.5× rated power for 10 seconds to start heavy loads. Generator Support – Store energy from a diesel generator. Advanced Charging Control – 6 programmable time periods for charge/discharge. Multi-Mode Operation – UPS, on-grid, and off-grid modes. Smart Monitoring Platform – Remote shutdown, parameter setting, and firmware updates. Robust Protection – Overload, short-circuit, temperature, and arc-fault protection (AFCI). IP65 Rated – Weatherproof for indoor/outdoor use. Technical Specifications Battery Input Battery Type: Li-ion Voltage Range: 160–800V DC Max Charge/Discharge Current: 50A + 50A Number of Battery Inputs: 2 Charging Strategy: Self-adaptive to BMS PV Input Max DC Input Power: 65kW Max DC Voltage: 1000V DC MPPT Voltage Range: 150–850V DC MPPT Trackers: 4 (2 strings each) Max PV Current (Isc): 55A × 4 AC Output Rated / UPS Power: 50kW Max Output Power: 55kW Output Voltage: 220/380V or 230/400V, 3-phase Peak Power (Off-Grid): 1.5× rated for 10 seconds Max Continuous AC Passthrough: 150A Power Factor: 0.8 leading to 0.8 lagging General Operating Temp: -40°C to 60°C Cooling: Smart active cooling (<45 dB) Communication: RS485 / CAN (BMS) Protection Rating: IP65 Certifications: IEC/EN 61000 series, IEC/EN 62109-1/2 Why Choose the Deye 50kW HV Hybrid? Scalable power – Build systems up to 500kW with parallel units. Energy flexibility – Combine solar, battery, and generator sources. Optimised performance – High-voltage battery compatibility reduces energy loss. Future-proof monitoring – Cloud-based smart platform with remote controls.
