Description

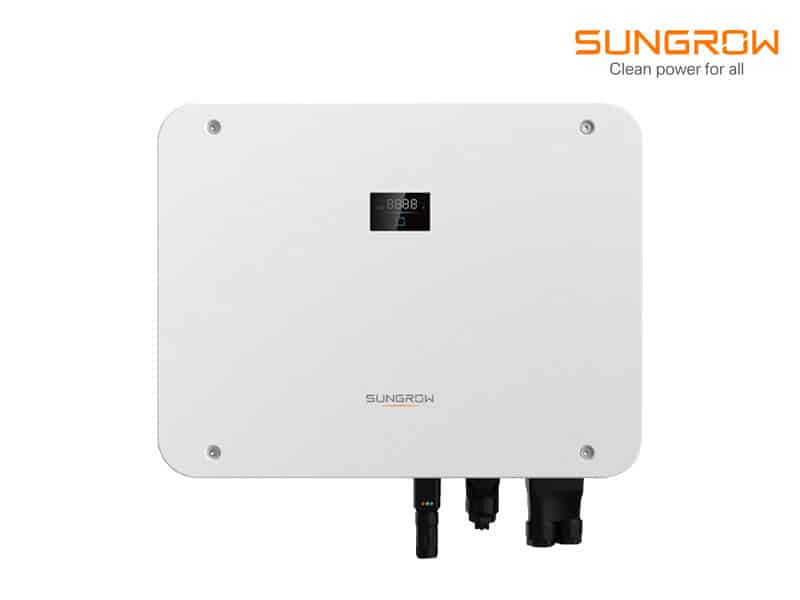

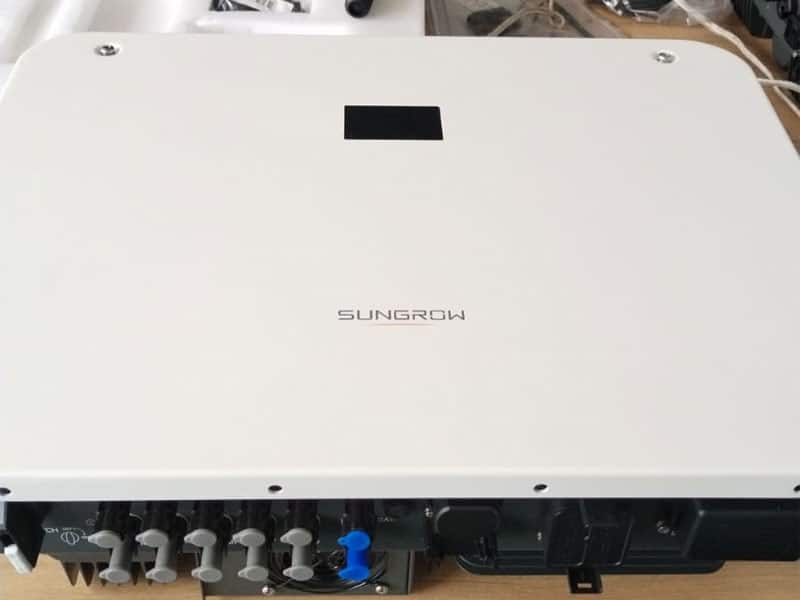

Sungrow 25kw Hybrid high-voltage inverter SG-SH25RT Discover the Sungrow 25kW Hybrid Inverter SG-SH25RT, a robust three-phase solution, now available at JC Solar Panels. This advanced system is designed to cater to substantial residential, commercial, or industrial solar installations, ensuring energy efficiency, independence, and seamless integration. This 3-phase inverter is designed to seamlessly integrate with up to 50,000 watts of solar panels and is compatible with Sungrow 3.2kWh High-Voltage battery banks. For enhanced scalability in energy storage, it can accommodate up to four battery inputs.   Optimal Configuration: We recommend pairing this inverter with up to 60 x 550W solar panels in a series connection to maximize solar energy capture and system efficiency, utilizing its three MPPTs (Maximum Power Point Trackers).   Key Features of the Sungrow 25kW Hybrid High-Voltage Inverter: Flexible Application: Wide battery voltage ranges from 100V to 700V. Supports parallel connection with a master-slave control system. Delivers 100% power to unbalanced loads in both backup and grid-tied modes.   Energy Independence: Provides a seamless transition to backup mode, ensuring continuous power during outages. Capable of 50A fast charging and discharging to cater to higher energy needs. Features each-phase export power control for balanced energy distribution.   Smart Management: Enhances energy efficiency with a high self-consumption rate, thanks to its optimized built-in Energy Management System (EMS). Includes free online monitoring tools to improve energy management and utility savings. Allows for remote firmware updates and customization of settings to suit individual needs.   Easy Installation: Offers solutions for whole-home backup, making it an ideal choice for comprehensive residential energy systems. Features unique push-in connectors that simplify the installation process, saving time and reducing complexity. Operates quietly, making it perfectly suited for residential environments without disturbing household tranquility.   The Sungrow 25kW Hybrid High-Voltage Inverter is perfect for homeowners looking to maximize their energy independence and efficiency. Its robust capabilities and smart features make it a top choice for those seeking to upgrade their home energy systems.   Key Specifications and Features of the Sungrow 25kW Hybrid Inverter SG-SH25RT: Model: SG-SH25RT Type: Hybrid Three Phase Inverter Applications: Flexible for various installation needs Energy Management: Promotes energy independence with efficient power utilization User Interface: Smart management tools with intuitive control Installation: Designed for easy and quick mounting   Technical Specifications: Maximum PV Input Power: 50,000W Maximum PV Input Voltage: 1,000V Rated PV Input Voltage: 600V MPP Voltage Range: 150-950V Number of Independent MPP Inputs: 3 Battery Compatibility: Li-ion Battery Battery Voltage Range: 100-700V Maximum Charge/Discharge Current: 50A Maximum Charge/Discharge Power: 30,000W/25,000W Maximum AC Input Power: 25,000W Maximum Power from Grid: 43,000W/43,000VA at 25°C Rated AC Output Power and Apparent Power: 25,000W / 25,000VA Maximum AC Output Current: 37.9A Rated Grid Frequency: 50/60Hz Efficiency: Peak efficiency at 98.2%, European Efficiency of 97.8% Operating Temperature: -25°C to 60°C with fan cooling Maximum Operating Altitude: 2000m Noise Level: 50dB(A)   Additional Features: Display and Communication: LED display with multiple communication options including RS485, WLAN, Ethernet, CAN, 4 x DI (Digital Inputs), and 2 x DO (Digital Outputs). Protection: IP65 rated for outdoor resilience Mounting: Includes a wall-mounting bracket for secure installation Dimensions: 620 x 480 x 245 mm Weight: 40 kg   Warranty and Support: Warranty: 10-year standard product warranty, terms and conditions apply. For more detailed specifications or to view the product brochure, please visit JC Solar Panels. The Sungrow 25kW Hybrid Inverter is perfect for those looking to maximize their solar energy utilization with a reliable, high-performance solution. Note that product images are for illustrative purposes only and may vary from actual items. Upgrade your solar system today with the Sungrow 25kW Hybrid Inverter and achieve optimal energy management and independence. Visit JC Solar Panels to purchase or learn more about integrating this cutting-edge technology into your energy setup.
