Description

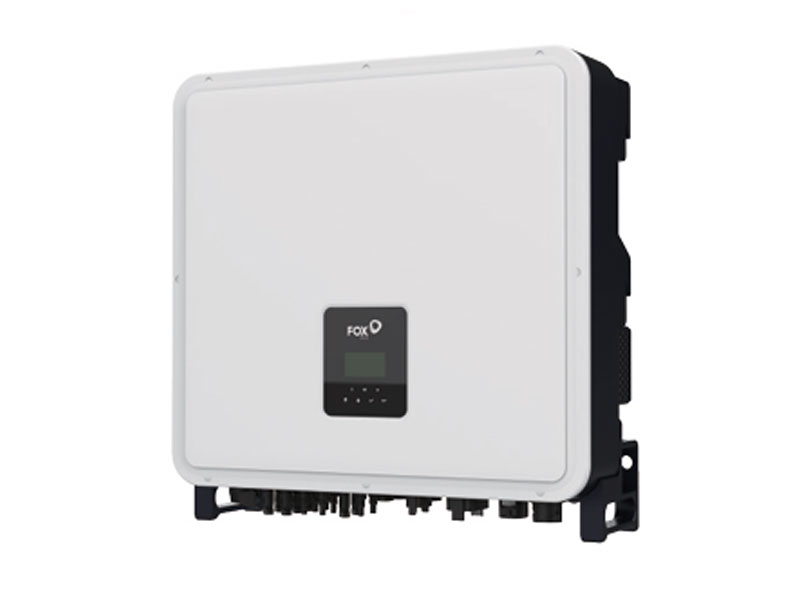

Introducing the FoxESS 30kW Titanium Inverter! Powerful, scalable, and designed for small to medium-sized commercial enterprises, the FoxESS 30kW Titanium Inverter provides a robust energy solution with expandable battery storage. Covering system sizes from 30kW to 300kW, it meets the needs of over 70% of commercial businesses! Key Features: ✅ Scalable & Flexible – Supports parallel installation for future expansion
✅ Compact & High-Efficiency – Optimized power density with 3 MPPT trackers (6 strings)
✅ Fast & Simple Installation – Designed for seamless integration
✅ Powerful EPS Output – Up to 36kW EPS for 60 seconds
✅ Full Remote Monitoring – Over-the-air updates & remote configuration
✅ 10-Year Warranty – On both inverter & battery
✅ Supports up to 45kW of solar panels
✅ Certified for South African Grid (NRS97-0-2-1)   Battery Expansion – Easy Upgrade! Maximize your energy storage effortlessly! Easily expand your system with extra batteries, offering a storage capacity of up to 83.88 kWh. With up to 10 storage inverters connected in parallel, you can scale your system to meet any installation requirement. Compatible FoxESS Batteries: ⚡ FoxESS EP 5 – 5kWh HV Battery
⚡ FoxESS EP 10 – 10kWh HV Battery
⚡ FoxESS 2.74kWh HV Battery (Master with BMS)
⚡ FoxESS 4.74kWh HV Battery (Master with BMS) FoxESS 30.0 Inverter Specifications ⚡ AC Output (Grid-Tied Mode) Nominal AC Power: 30,000VA Max Apparent AC Power: 45,000VA Rated Grid Voltage: 400/230V; 380/220V (3L/N/PE) Rated Grid Frequency: 50/60Hz ±5Hz Max. AC Current (Per Phase): 45.5A Power Factor: 1 (adjustable from 0.8 leading to 0.8 lagging) Total Harmonic Distortion (THDI): <3% @ Rated Power Parallel Operation: Up to 10 units Battery Input Battery Type: Lithium Battery Voltage Range: 150V – 850V Max Charge/Discharge Current: 50A + 50A Full AC Load Battery Voltage: 400V Communication Interface: CAN ⚡ PV Input (Hybrid Model Only) Max. Recommended DC Power: 45,000W Max. DC Voltage: 1000V Nominal DC Operating Voltage: 400V MPPT Voltage Range (Full Load): 330V – 790V Number of MPPT Trackers: 3 Strings Per MPPT Tracker: 2 ⚡ EPS Output (Backup Mode) Max Apparent AC Power: 30,000VA Peak Apparent AC Power (60s): 36,000VA Rated Output Voltage: 400V/230V; 380V/220V Max EPS Current (Per Phase): 45.5A Switch Time: <20ms General Data IP Rating: IP65 (Outdoor Use) Cooling Method: Smart Fan Cooling Installation: Wall-Mounted Operating Temperature Range: -25°C to +60°C (Derating at 45°C) Altitude: <4000m Noise Emission: <60dB Weight: 52.5kg (Net), 57.5kg (Gross) Dimensions (WxHxD): 600mm × 560mm × 225mm Protection & Compliance Anti-Islanding Protection Short Circuit & Over-Voltage Protection Insulation Resistance Detection Leakage Current Protection Overcurrent & Overtemperature Protection AC/DC Surge Protection (Type II) AFCI Protection (Optional) DC Switch Included Safety Compliance: EN 62109-1, EN 62109-2 EMC Compliance: IEC 61000-6-2, IEC 61000-6-3 This inverter is highly efficient, scalable, and offers excellent backup power capabilities, making it an ideal choice for commercial and industrial applications.
