Description

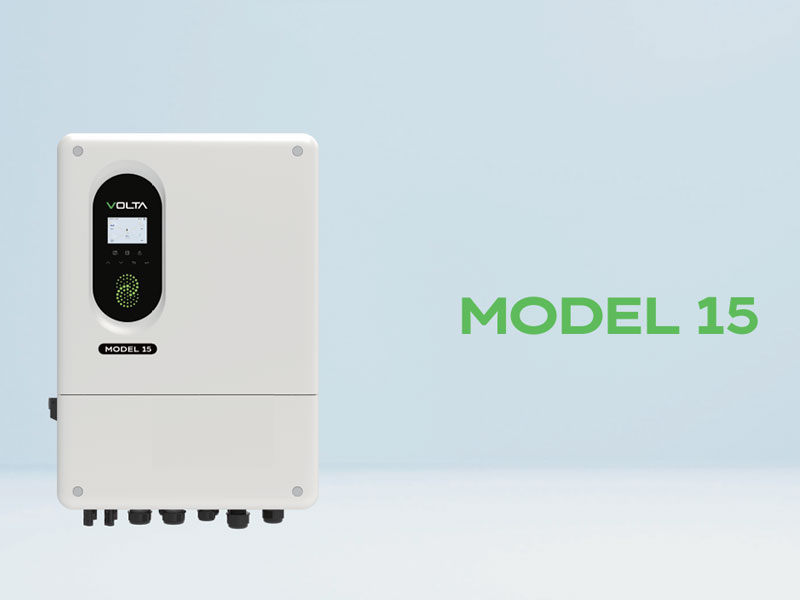

Volta Model 15 – 15kW 3-Phase Hybrid Inverter Overview The Volta Model 15 is a 15kW 3-phase hybrid inverter designed for high-performance solar, battery, and generator-integrated systems. With intelligent energy management, wide PV voltage range, and ultra-fast switching times, it delivers efficient power flow, grid backup, and renewable energy optimization for residential, commercial, and industrial applications. Key Features Hybrid Flexibility: Supports solar input, battery storage, generator, and grid—ideal for off-grid, backup, or grid-tied setups. ⚡ High Performance Output: Nominal output: 15,000W AC output apparent power: 16,500VA EPS peak power: 30,000VA for 10s ☀️ Max PV Input Power: 30,000Wp (supports PV oversizing up to 200%) Max PV voltage: 1000V MPPT voltage range: 160–950V 2 MPPTs, 4 PV inputs True 3-Phase Inverter:
Compatible with 220/380V or 230/400V, 50/60Hz
EPS output with <4ms UPS-level switching time Battery Integration: Supports lithium and lead-acid batteries Nominal battery voltage: 48V Max charge/discharge current: 300A ️ Built-In Safety Protections: Integrated DC & AC SPDs Optional AFCI (Arc Fault Protection) Shadow tracking & PV disconnect protection Advanced Communication & Monitoring: CAN, RS485, USB, NTC, CT, Meter Built-in WiFi + LAN LED + LCD display Technical Specifications Max. PV Input Voltage: 1000V MPPT Voltage Range: 160 – 950V Max Input Current (per MPPT): 36A Max Battery Current: 300A EPS Output Voltage/Frequency: 230/400V, 50/60Hz Operating Temp Range: -25°C to +60°C Protection Rating: IP65 Cooling: Smart Cooling (Fan-assisted) Noise: ≤ 55dB Dimensions (W x H x D): 520 x 705 x 258 mm Weight: 44.6 kg Compliance: NRS 097-2-1, IEC 61727, IEC 62116, EN IEC 62109-1/-2 Warranty: 5 Years ✅ Applications Grid-tied solar with battery backup Off-grid and remote power systems Commercial or large residential solar storage solutions Generator hybrid systems with fast switchover
