Description

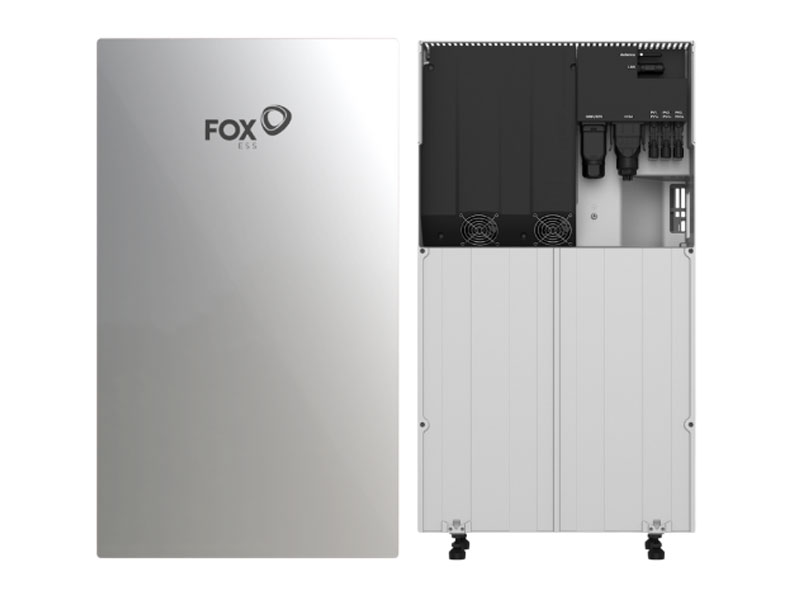

The Fox ESS EVO Series 10kW All-in-One System (Model: EVO10-10H) is a next-generation hybrid inverter and solar battery combo designed for high-performance residential and light commercial solar storage applications. This sleek, integrated system includes a 10kW hybrid inverter and a 10.24kWh lithium iron phosphate (LFP) battery, supporting seamless indoor or outdoor installation. The Fox ESS EVO10-10H packs a 10 kW hybrid inverter and a 10.24 kWh LiFePO₄ battery into one sleek, IP66-rated unit—built for South African homes and light commercial sites that need reliable, efficient energy day and night. With intelligent monitoring, fast EPS switchover, 3x MPPTs for optimized solar input, and the ability to scale up to 30.72kWh, the Fox EVO system is engineered for superior reliability, efficiency, and convenience. Key Features – Inverter: Triple MPPTs for efficient solar harvesting 200% PV oversizing capability (20kW max PV array) Low 80V startup voltage for earlier solar production Built-in EPS (Emergency Power Supply) with 200% overload for 10s Off-grid support with <4ms switching time Export Limitation Support: CT, Meter, DRM0, E-Stop Parallel-ready: up to 3 units Integrated WiFi / LAN / 4G / App monitoring via FoxCloud IP66-rated for outdoor use Wall or floor mountable Max Inverter Output (10s): 20kVA Key Features – Battery: Integrated 10.24kWh LiFePO₄ Battery High DoD: 95% usable energy Scalable to 30.72kWh (up to 3 battery packs) High round-trip efficiency (up to 96.4%) Battery warm-up and built-in fire suppressant IP66-rated for full outdoor protection 6000+ cycle life Smart BMS with CAN/RS485 Technical Specifications: Inverter: Model: EVO10-10H Rated Output Power: 10,000W Max Output Power (10s): 20,000VA Max PV Input: 20,000W MPPT Voltage Range: 80 – 550V Efficiency: 97.6% Max / 97.2% Euro Parallel Support: Yes (up to 3 units) Dimensions (W×H×D): 584 × 1009 × 197 mm Weight: 113kg Protection Rating: IP66 Cooling: Intelligent air cooling Noise: <45dB Monitoring: WiFi, LAN, App, Web, 4G optional Comms: Ethernet, RS485, CAN, USB, BMS, SG Ready Certifications: CE, UN38.3, NRS 097, AS/NZS 4777, IEC 62109 Battery: Chemistry: LiFePO₄ Nominal Energy: 10.24kWh Usable Energy: ~9.73kWh (95% DoD) Cycle Life: >6000 cycles Scalability: Up to 3 batteries (30.72kWh total) Fire Suppressant & Battery Warm-Up: Included Enclosure: IP66 Smart Monitoring with FoxCloud: View system performance, historical usage, and manage time-of-use charging App and web access from anywhere Built-in without additional dongles   Why you’ll love it Keep the lights on: <4 ms EPS switchover feels seamless—critical loads stay powered when the grid drops. Harvest more solar, more hours: Triple MPPTs, 200% PV oversizing and a low 80 V start mean earlier starts, later finishes, and better yield. Grow as you go: Start at 10.24 kWh, scale to 30.72 kWh (and up to 3 inverters in parallel) as your needs expand. Safe, long-life storage: LiFePO₄ chemistry, 95% DoD, 6000+ cycles, built-in fire suppressant and battery warm-up. Smart savings: FoxCloud app/web lets you track usage and automate time-of-use charging. Installer-friendly, site-ready: Wall or floor mount, indoor/outdoor IP66, 20 kVA 10-second surge for tough startup loads. Compliance you can trust: CE, UN38.3, IEC 62109, NRS 097, AS/NZS 4777. Bottom line: The EVO Series turns sunshine into dependable energy and backup— with the brains to cut your bill and the muscle to ride out outages. Choose the Fox EVO10-10H and take control of your power.
